Color: 6 groups of color + 6 groups of white + 6 groups of varnish (varnish optional)
Print Size: 600*900MM
Jetvinner A1 UV Printer With 3pcs XP600 Print Head Large Format UV Printing Machine For Phone Case Cylinder Metal Glass Print

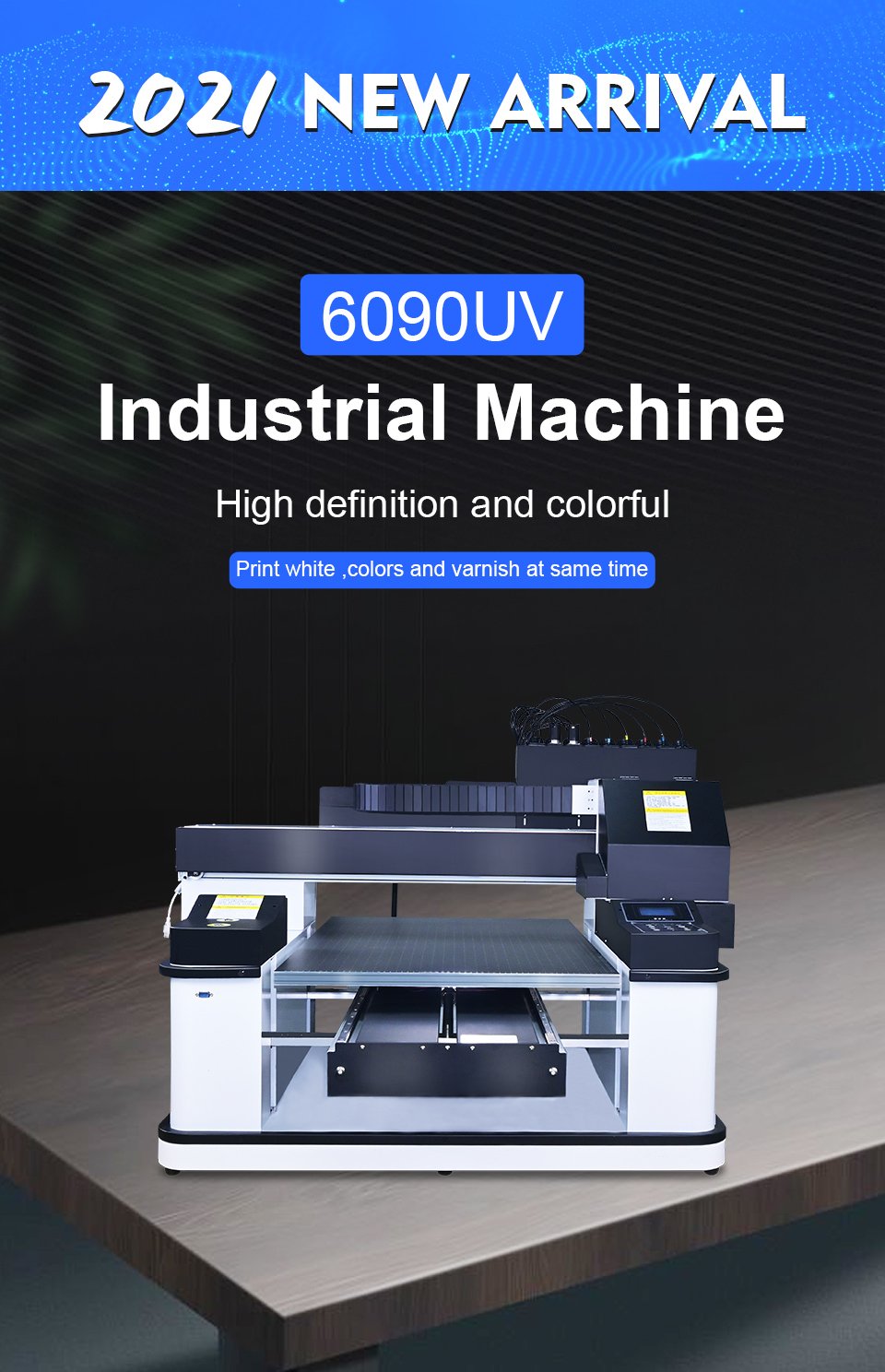

Product: One set of 6090 Automatic UV printer With 3 Print Head
Print Height: 0~230MM
Standard software: RIPrint

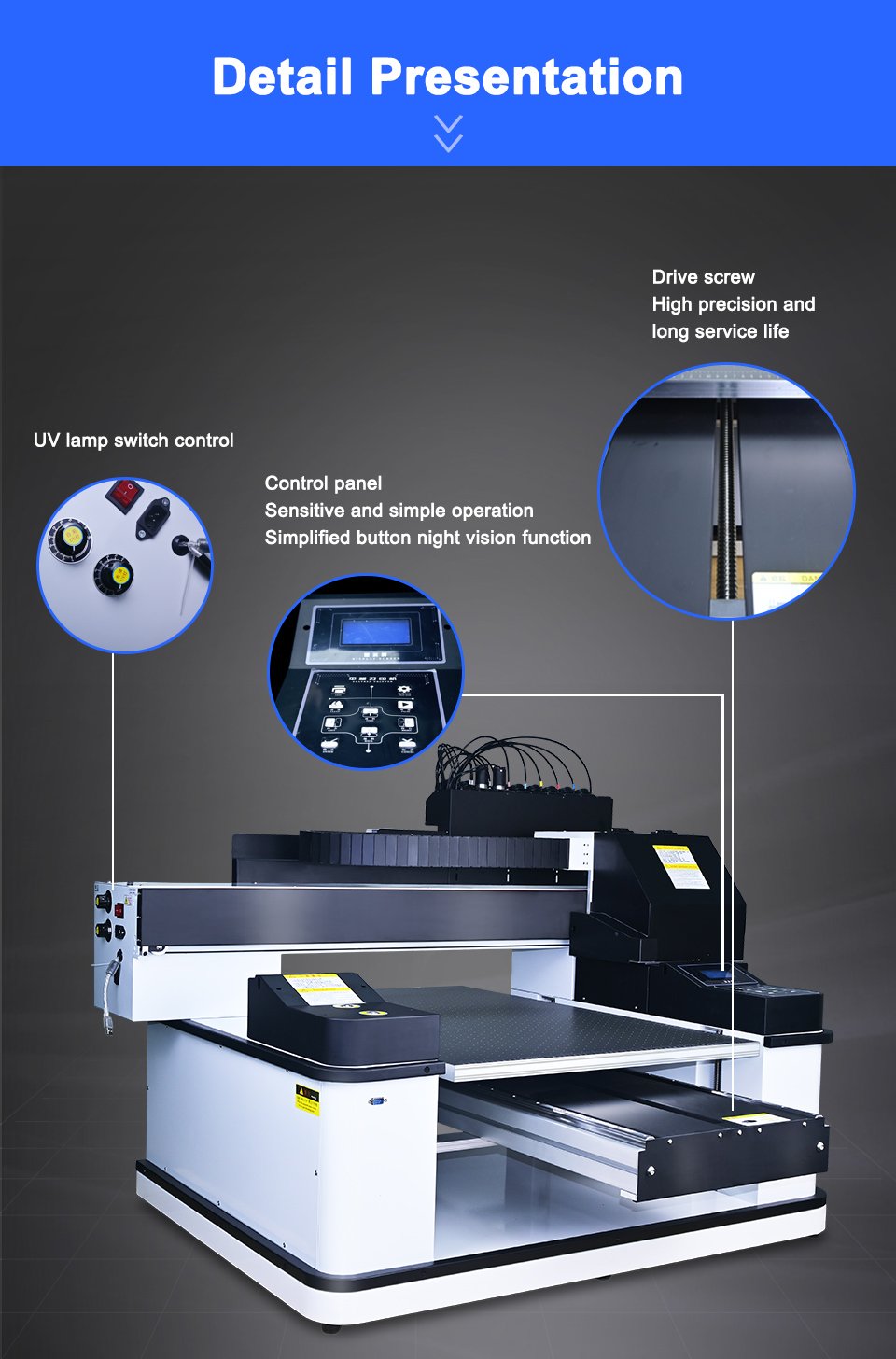

Advantage:

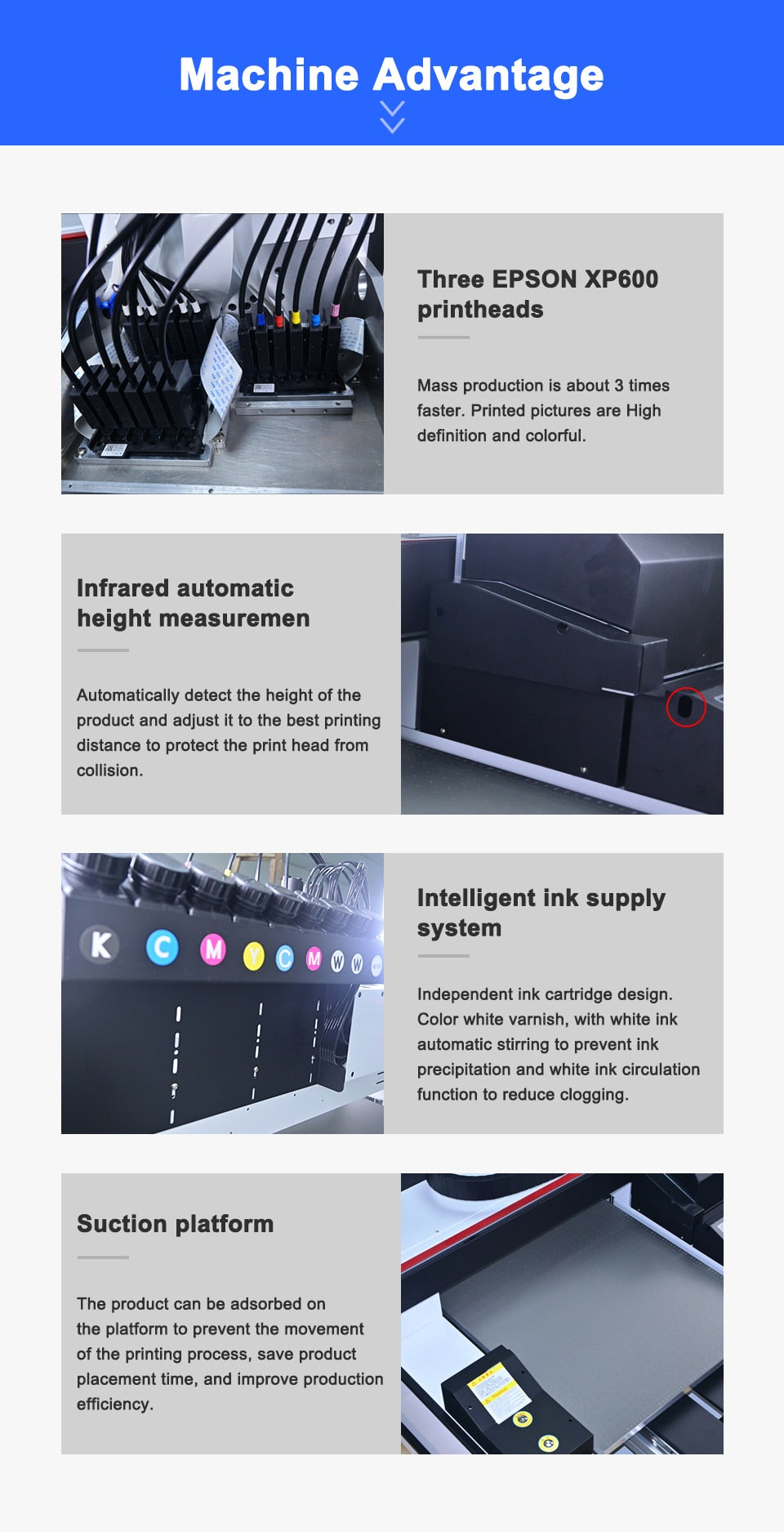

1. With 3 nozzles: color + white + varnish
2. With white ink stirring to prevent ink precipitation.
3. With white ink circulation prevents nozzle clogging.
4. With adjustable UV lamp suitable for different materials.
5. With Suction platform to attach product well on the print tray.
6. Platform screw drive more durable and more stable then belt drive.
Model |
6090UV |
Printhead |
XP600(3pcs) |
|
Printing accuracy |
4PASS、8PASS、16PASS、32PASS |
Printing platform |
600*900MM |
|
Printing speed |
8PASS; 7MIN/board, 3~5 square meters/H |
Standard software |
Ruiyin |
|
Print height |
0~230MM,Infrared altimetry |
Applicable system |
Windows 7/10 |
|
Ink consumption |
1 square meter/20ml |
Relief printing |
able |
|
Ink supply method |
12 colors continuous ink supply |
Printing varnish |
able |
|
White ink output |
Support/white color with the same |
Color configuration |
6 groups of color + 6 groups of white + 6 groups of varnish (varnish optional) |
|
White ink circulation |
Pulse servo motor drive |
White ink mixing |
have |
|
Platform driven |
Ruiyin |
Suction platform |
have |
|
UV lamp life |
3 years |

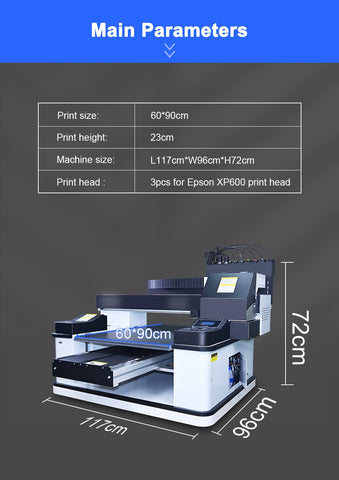

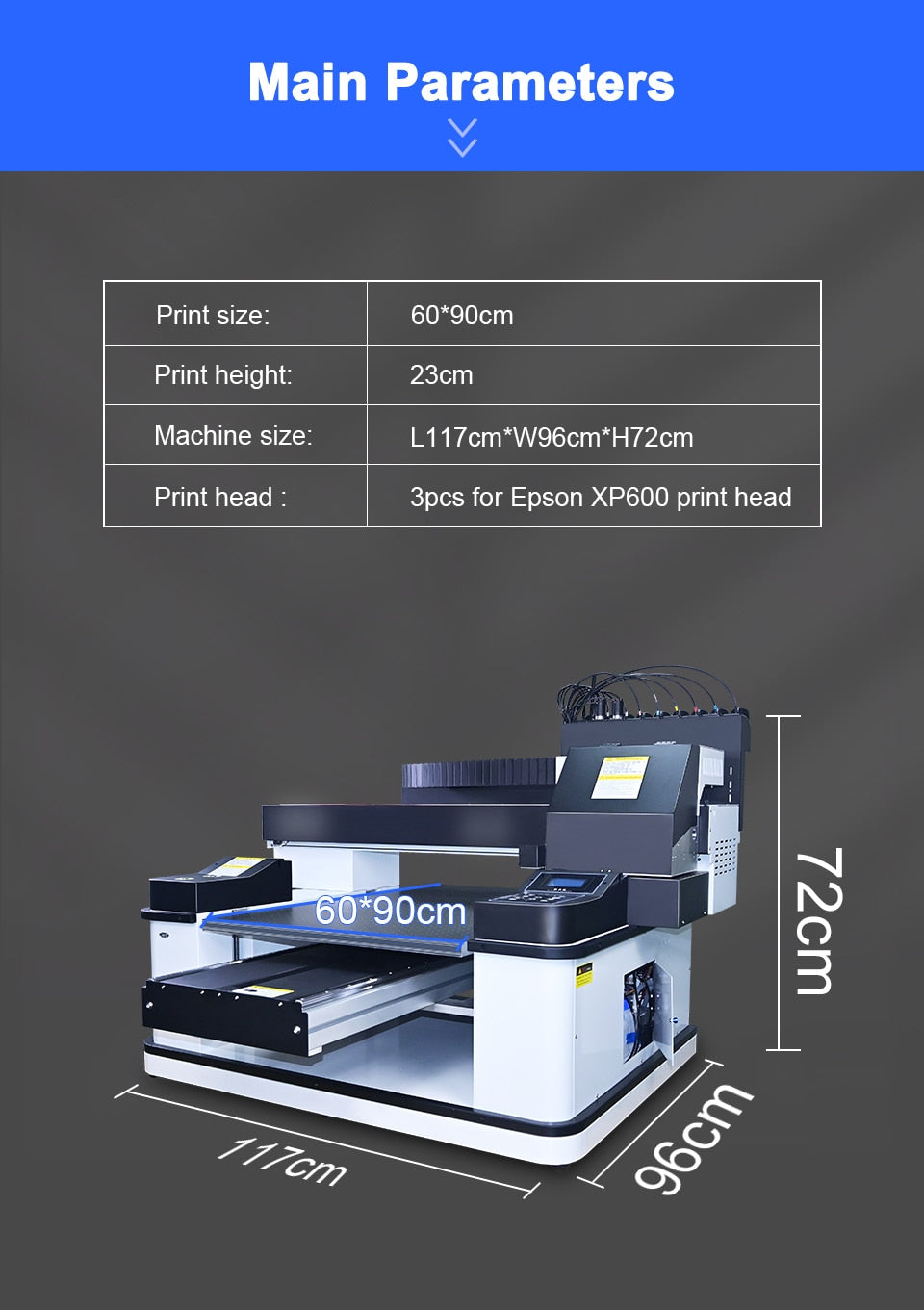

Package Size |
L1290*W1080*H940MM |
|
UV lamp cooling |
water cooling + air cooling |
Equipment size |
L1170*W960*H720MM |
|
UV lamp power |
150W adjustable |
Net weight/Gross weight |
120KG/175KG |
|
Adjustment of platform |
touch screen control panel and infrared induction height |
Outer packaging |
Export wooden box + foam (with forklift feet) |
|
Voltage/plug |
AC100-230V/Match according to country |
|||
Protection of nozzle |
Intelligent infrared anti-collision system, ink pad maintenance fluid anti-blockage |
|||
Print media |
Mobile phone shell/leather/lithograph/crystal/acrylic/card/CD/U-disk/name plate,etc.plane |
|||
Advantage |
The printer adopts stable platform technology, advanced stepper motor drive method, automatic in and out at the same time with infrared side high laser positioning, water cooling + air cooling combined method, wide printing range, products within 230MM height can be printed |
Suit for: Bottle, Cylinder, Phone Case, Metal, Wood, KT Board, Stone, Glass, Acrylic, TUP, PVC, ABS, plastic, pen, etc.
