Color: Black
Material: PCB
Description:

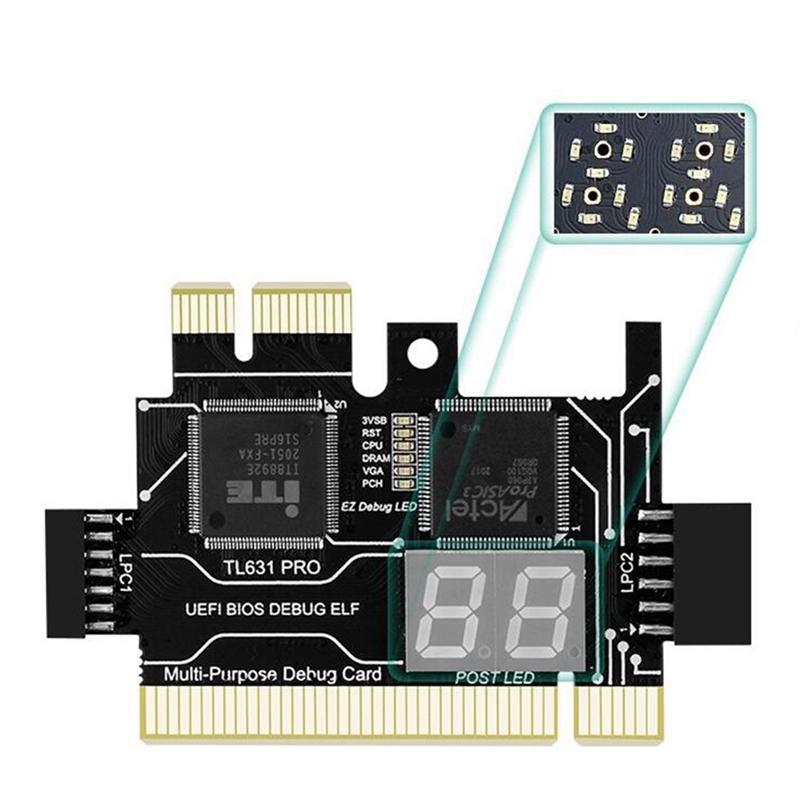

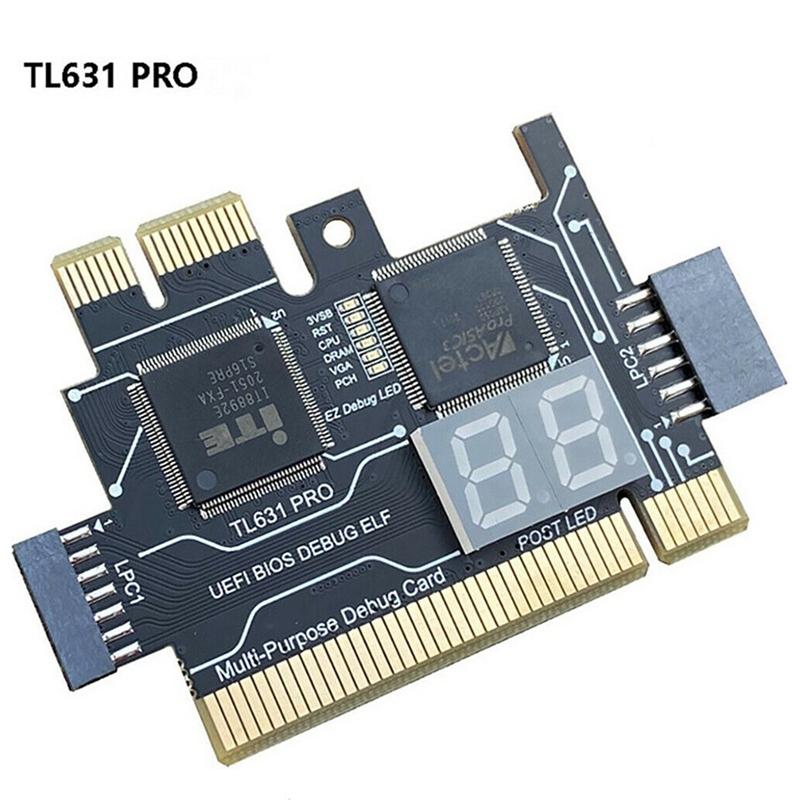

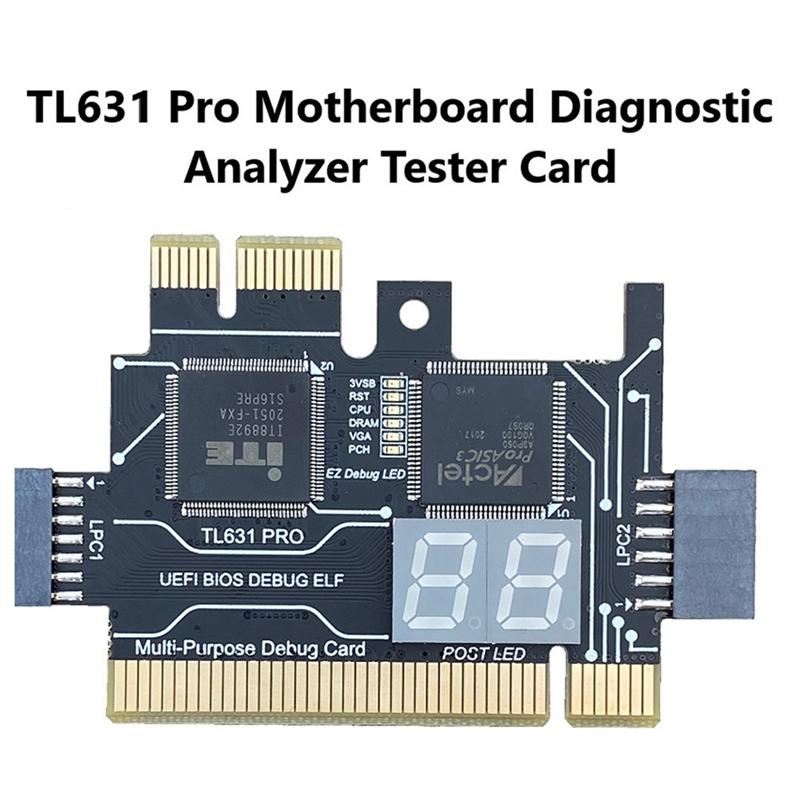

1. TL631 PROuses the new 130-nanometer actel ProASIC3 flash memory series chip with a new pure system. Inherit the family design language style.
2. Gemini drive module: BGA type driver module, hidden part design.
3. The TL631 PRO card does not see any resistance and capacitance, it looks beautiful and generous. Use it more freely.
4. Integrated patch digital tube: Self-developed binding digital tube, LED core, bright and comfortable, thin and scientific sense.
Different batches, product appearance and color may be different, does not affect the use

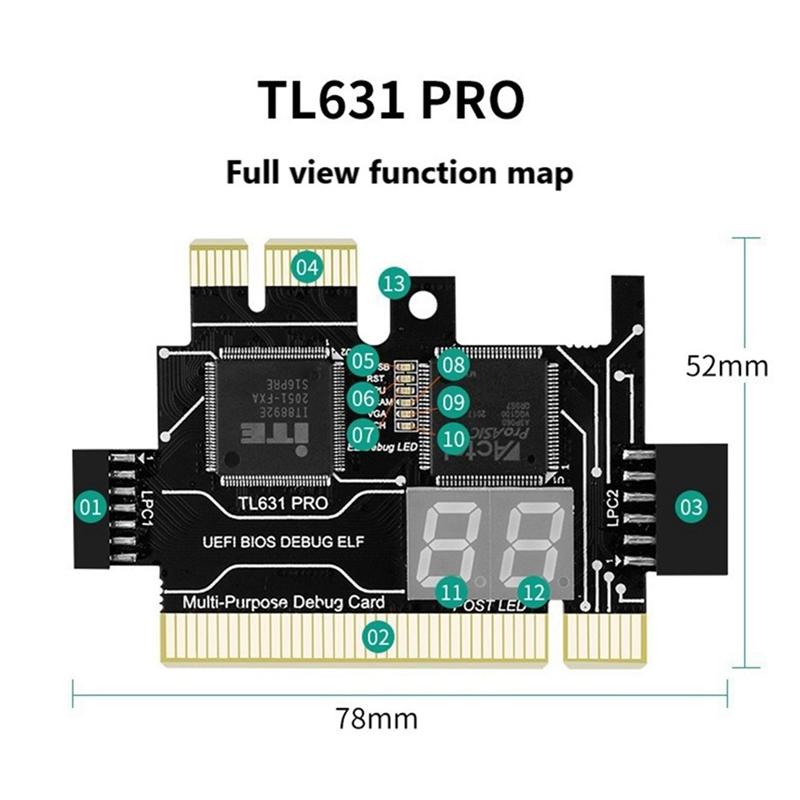

TL631 Pro interface description:
1: LPC1 shared high-speed channel = connect to the motherboard 2.0 small pin LPC interface, 2.0 module
(Module expansion LPC3 interface can connect notebook MINI PCIE conversion card, A-DEBUG conversion card, ASUS notebook DEBUG-CON. EC-DEBUG).
2:PCI high-speed channel = support all PCI slots.
3:LPC2 shared high-speed channel = connect to the motherboard 2.54 large pin LPC interface, ASUS COM-DEBUG. ASRock UART1, MSI JDP, SuperMicro-SPl.
4:PCIE X1 high-speed channel = support Gigabyte without PCI motherboard (other brands do not support).
5:3VSB power indicator, to detect whether the power is normal.
6:RST reset indicator, to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted)
7:CPU indicator light, to detect whether the CPU module is normal.
8:DRAM memory indicator, to detect whether the memory module is normal.
9:VGA graphics indicator light, to detect whether the graphics card module is normal.
10:PCH south bridge indicator light, to detect whether the south bridge module is normal.
11:DP decimal point, CLK signal display.
12:DP decimal point, FRAME frame signal display.
13: threading hole

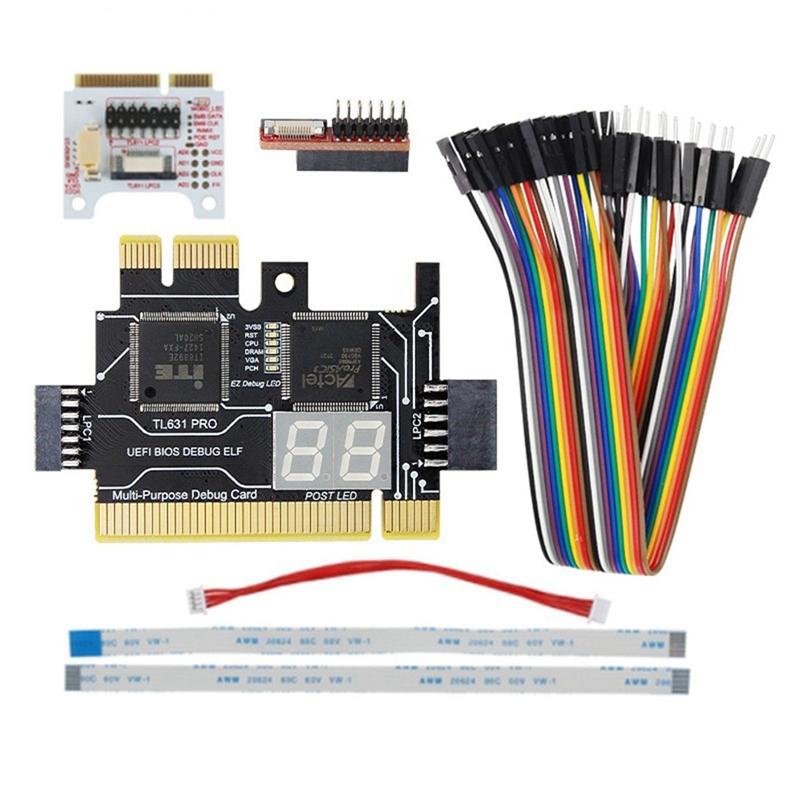

Package Contents:
1 x TL631 Pro Diagnostic Card
1 x 2.0 modules
15 x DuPont cables
1 x Expansion Card
1 x Power Cord
3 x flex cables
